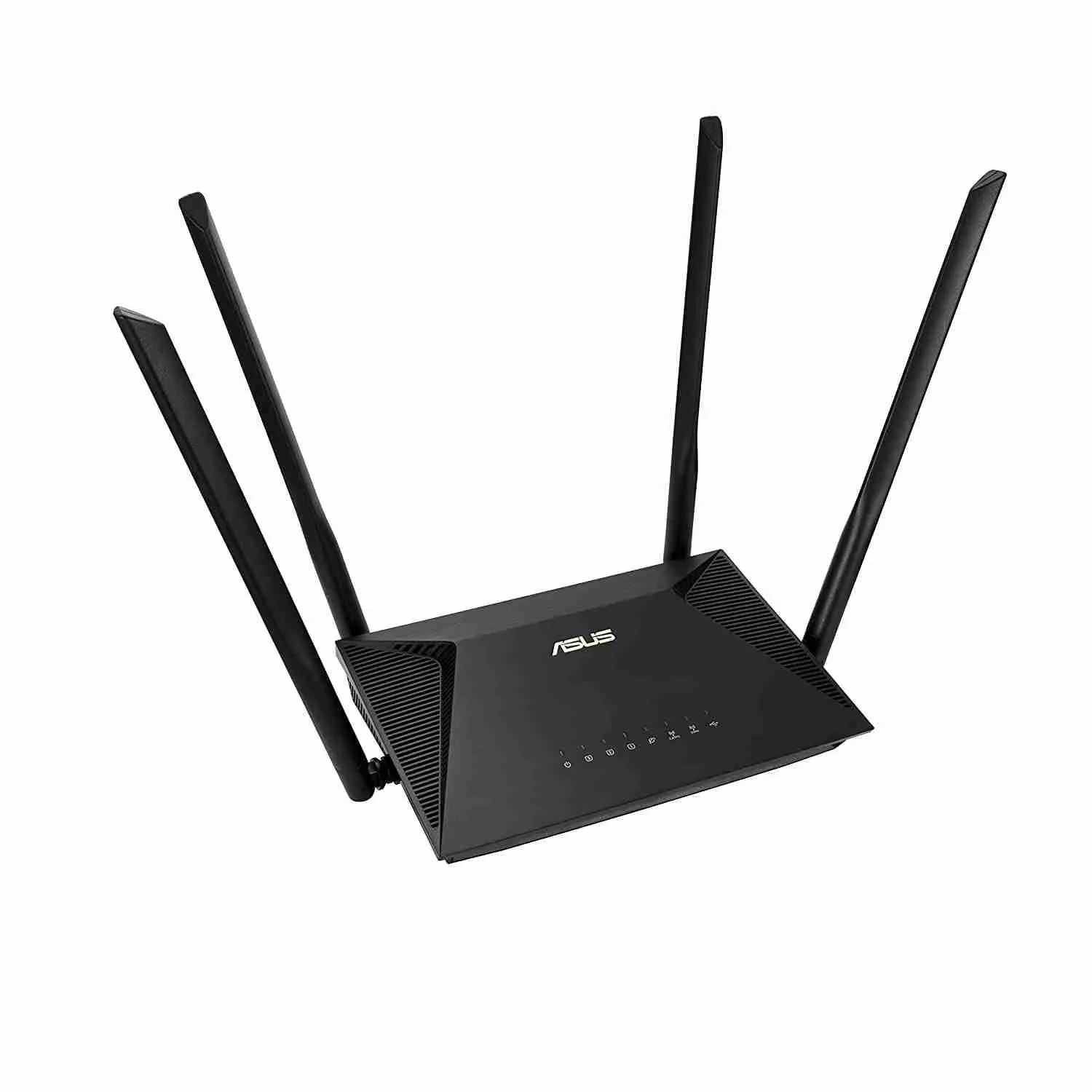

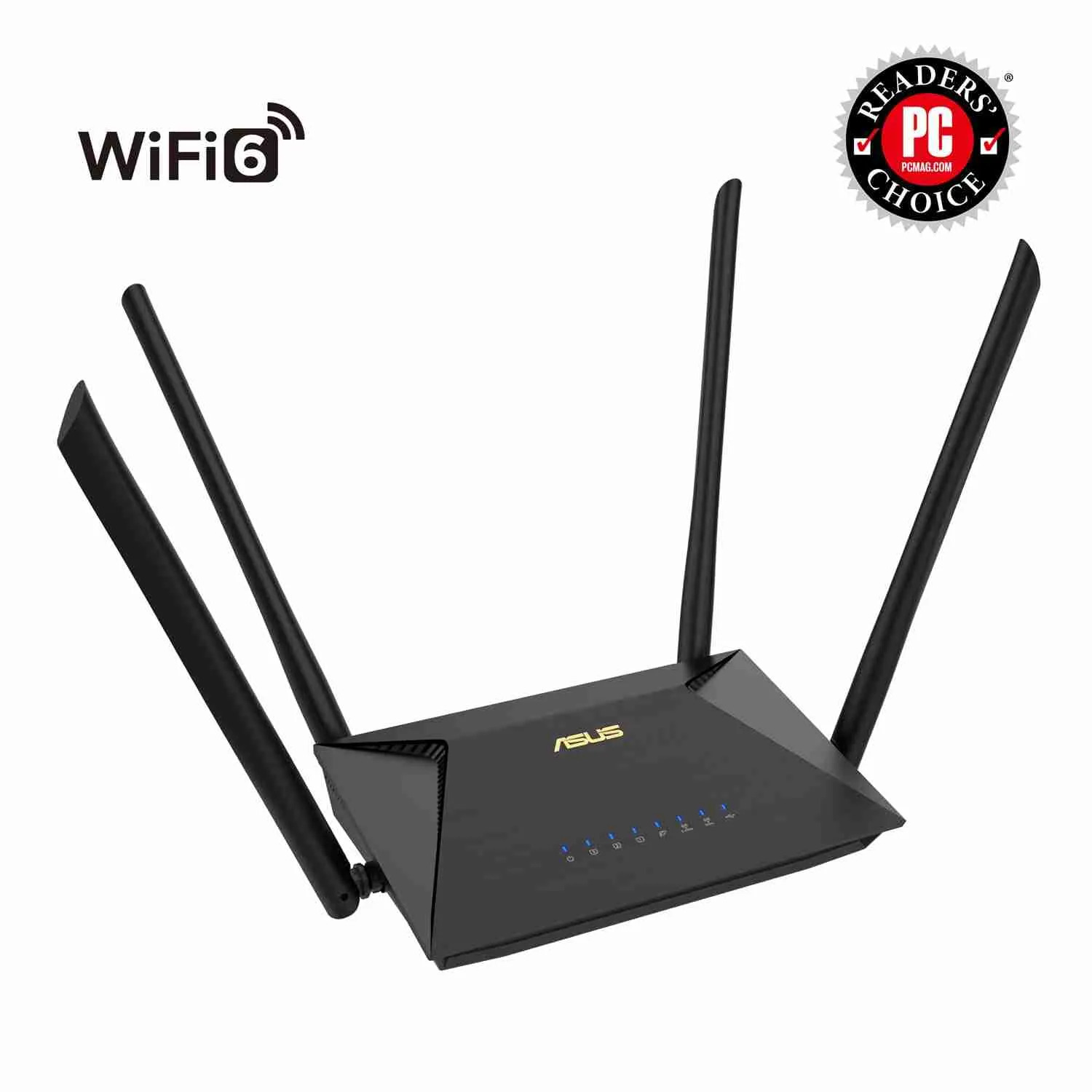

ASUS RT-AX53U AX1800 Dual Band WiFi 6 Router

New-Gen WiFi Standard – WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.

Connect in your way – You can share the internet from 3G/4G dongle to the router by plug the dongle in a USB port.

Ultra-fast WiFi Speed – RT-AX53U supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.

Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously

Protection for Your Home Network – Aiprotection powered by Trend Micro™, blocks internet security threats for all your connected smart devices.

Better Partner with Mesh System – Compatible with ASUS AiMesh WiFi system for seamless whole-home coverage.

Get Your Home Ready for WiFi 6 (802.11ax):

The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Next-Gen WiFi Speed:

RT-AX53U is a 2×2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — RT-AX53U is 1.5X faster than 802.11ac 2×2 dual-band routers.

Built for Multi-device Households:

With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6(802.11ax) standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.

Better Battery Life for Your Devices:

Target Wake Time (TWT) allows RT-AX53U to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life*.

WiFi that Goes Farther:

With the latest WiFi 6(802.11ax) standard featuring OFDMA technology, RT-AX53U provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better WiFi connection throughout your home*.

Protection for your Home Network:

RT-AX53U incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend Micro™ Smart Home Network. With AiProtection, all connected devices are protected, even if they have no antivirus capability of their own — such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers.

Powerful Whole-home WiFi System, The Way You Want.

In most cases, your RT-AX53U can deliver smooth, reliable WiFi to every part of your home. But WiFi coverage can be affected by many factors — room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home WiFi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models — protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is WiFi you can rely on — for all your devices, all the time.

Connectivity Options:

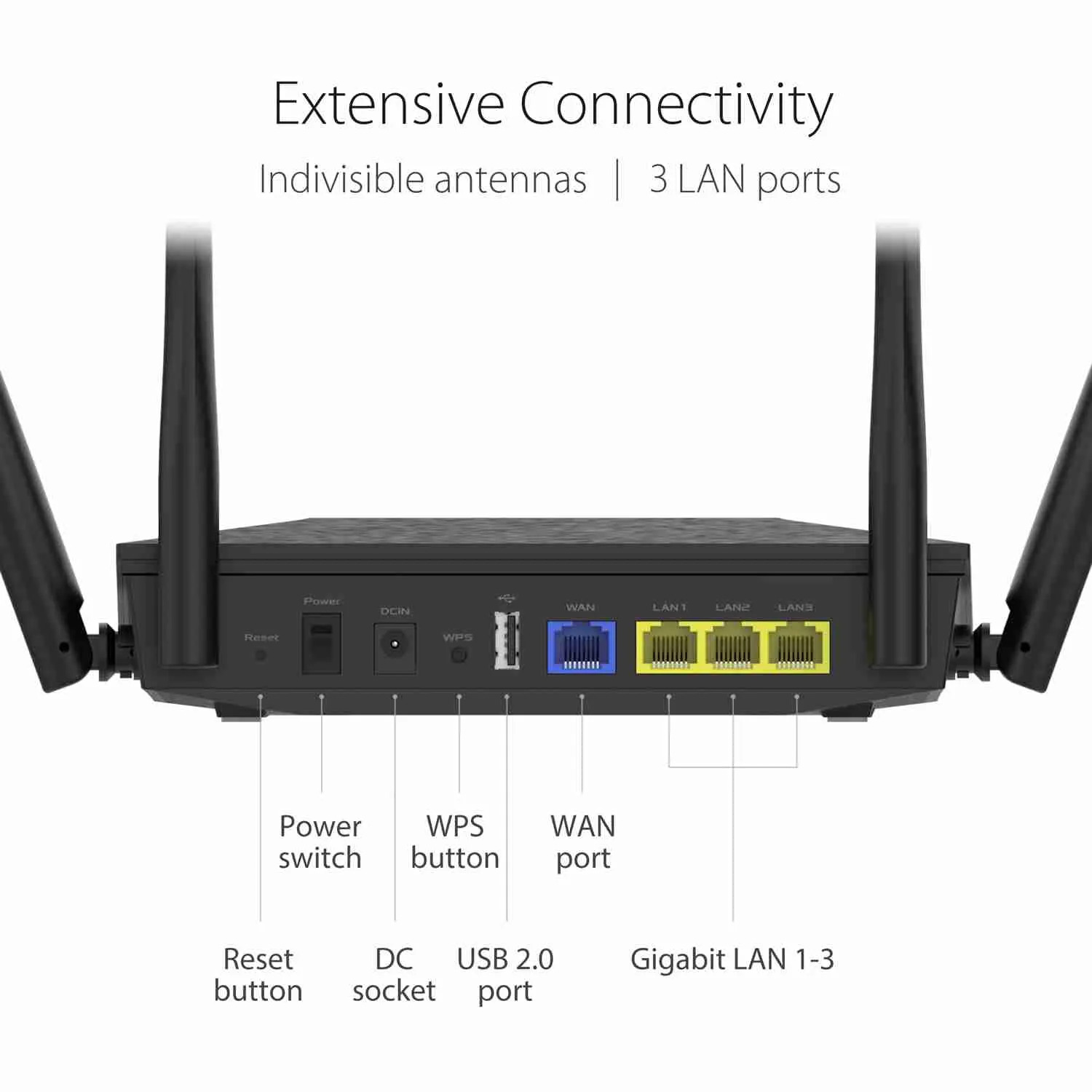

RT-AX53U has one Gigabit WAN port, three Gigabit LAN ports, and USB 2.0 port*. Smart TV, game consoles, NAS storage devices, backup internet and more can now have their own dedicated ports, making RT-AX53U your solid digital home hub.

Robust control and optimization with ASUSWRT:

With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. With fast setup, multi-device detection, and flexible settings, ASUSWRT makes the most of your network performance.

Specifications:

Model Name:

RT-AX53U

Network Standard:

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment:

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

AX technology:

Yes

Antenna:

Ex-antennas*4

Transmit/Receive:

2.4GHz 2×2

5GHz 2×2

Processor:

Dual-core (4 VPE)

Memory:

128 MB Flash

256 MB RAM

Boosts speed:

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

Operating Frequency:

2.4G Hz / 5 GHz

Ports:

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1

Button:

WPS Button, Reset Button, Power Switch

LED Indicator:

Power x 1

2.4G x 1

5G x 1

LAN x 3

WAN x 1

USBX1

Power Supply:

AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 1.5A current

Package content:

RT-AX53U

RJ45 x1

Adapter x1

QSG x1

Warranty Card x1

Product Weight (g):

346g

AiMesh:

AiMesh : Yes

Primary AiMesh router : Yes

AiMesh node : Yes

Router APP:

ASUS Router APP : Yes

Game:

Game Boost/acceleration : No

Alexa:

Support Alexa skil : Yes

IFTTT:

Support IFTTT : No

AiProtection:

AiProtection : AiProtection Classic

Malicious site blocking : Yes

Two-Way IPS : No

Infected Device Prevention and Blocking ; Yes

Parental Control:

Parental Control : Yes

Parental Control Customized Internet schedule : Yes

Traffic Control:

Adaptive QoS : No

Bandwidth limiter : Yes

Traditional QoS : Yes

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Website history : No

Wireless:

IPv6 : Yes

MU-MIMO : Yes

Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal

UTF-8 SSID : Yes

Guest Network : Yes

WPS : Yes

Wi-Fi MAC address filter : Yes

Wireless scheduler : Yes

Airtime fairness : Yes

RADIUS Server : Yes

Universal beamforming : Yes

Explicit beamforming : Yes

IGMP snooping : Yes

WAN:

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : Yes

WAN Aggregation : No

3G/4G LTE dongle : Yes

Port triggering : Yes

DMZ : Yes

DDNS : Yes

Let’s Encrypt : Yes

LAN:

DHCP Server : Yes

IPTV : Yes

LAN Link Aggregation : No

Manually assign IP address : Yes

VPN:

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : Yes

VPN Server OVPN : Yes

VPN Server PPTP : Yes

VPN Fusion : No

USB application:

3G/4G LTE dongle : Yes

HDD hibernation : Yes

Safely Remove disk : Yes

AiCloud : No

Download master : Yes

AiDisk : Yes

Media Server : Yes

Time Machine : No

Samba Server : Yes

FTP Server : Yes

Shared Folder privileges : Yes

Administration:

Operating mode : Access Point, Media Bridge, Repeater, Router

Free OS upgrade : Yes

Firewall : Yes

Wake on LAN (WOL) : Yes

SSH : Yes

Configuration backup and restore : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes
